PRODUCT CODE: TW-WR-7718

Earn 2129 RED points with this purchase More Info

Delivery - Standard 3 To 5 Working Days.

1 Years(s) Manufacturer Warranty

Find your nearest store to purchase offline.

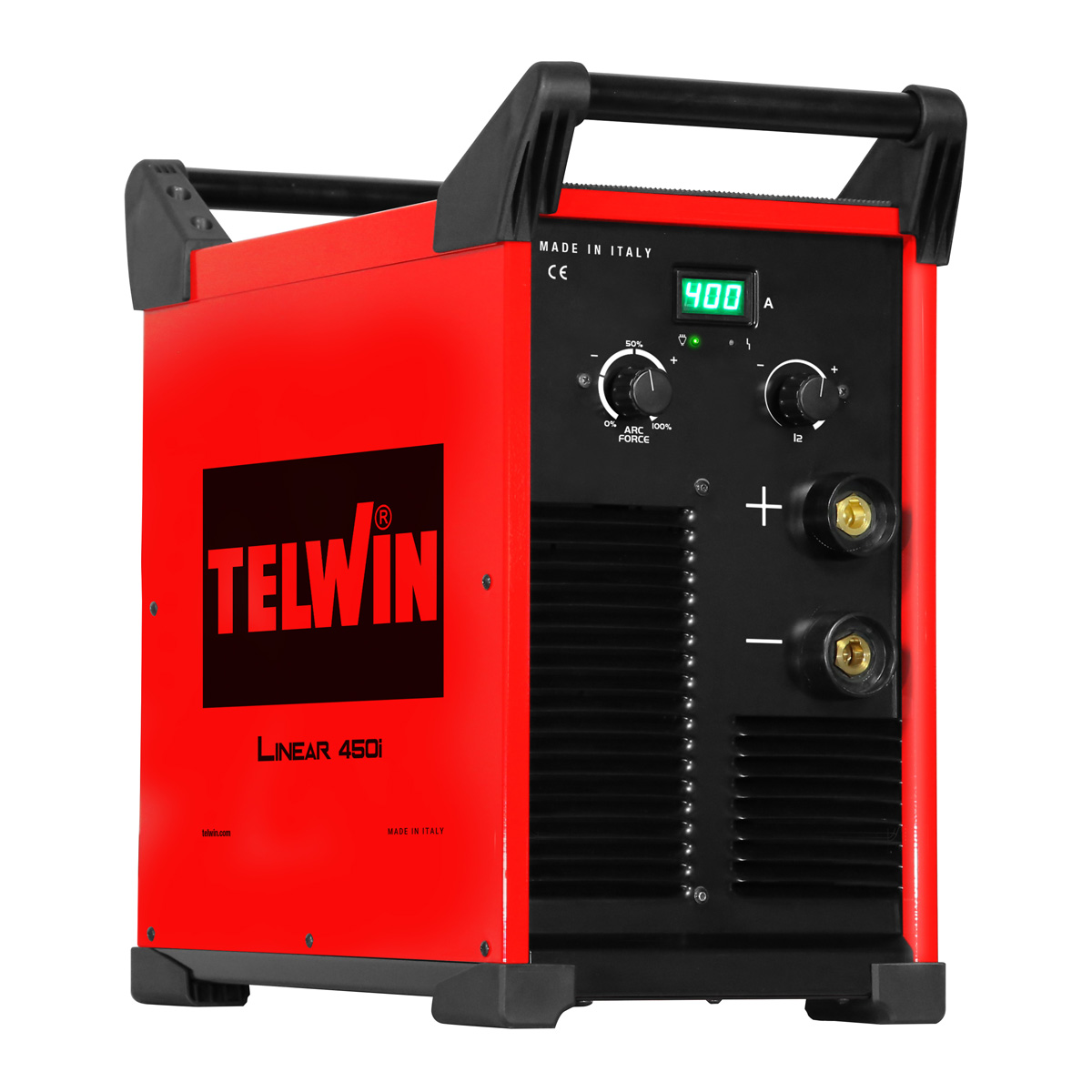

Type	Inverter MMA Electrode Welding Machine
Phase	Three Phase
Three Phase Mains Voltage	230 / 400 V
Mains Frequency	50 / 60 Hz
Current Range	20 - 320 / 20 - 400 A
Max Current	300 @ 40 % / 400 @ 40% A
DC Current	240 / 300 A
Max No Load Voltage	82 / 77 V
Max Absorbed Current	35 / 30 A
Absorbed Current	AT 60%: 25 / 20 A
Max Absorbed Power	11 / 16.2 kW
Absorbed Power	AT 60%: 7.9 / 10.8 kW
Motorgenerator Minimum Power	16 / 23 kW
Efficiency	90 %
Power Factor	0.77
D. Usable Electrodes In DC	1.6 - 6 mm
Protections	IP23, Thermostat, Undervoltage (-25%), Overvoltage (+15%), Overcurrent, Motor-Generator Protections.
Certification	EAC CERTIFICATION
Design / Build	Robust, Impact Resistant And Dustproof / Low Weight And Size
Display	Display To Show Pre-Set Welding Current.
Energy Saving	High Energy Saving
Color	Black And Red
Other Information	Use With A Wide Range Of Electrodes: Rutile, Basic, Stainless Steel, Cast Iron. / Ideal For Use With Motor Generators, It Maintains A High Level Of Stability Of The Welding Current To Variations In The Supply Voltage, Both To Undervoltage (-25%) And Overvoltage (+15%). / Particularly Resistant To Dirt And Dust Thanks To The Special Construction Of The Ventilation System Which, Following A Dedicated Tunnel, Preserves The Electronic Components, Guaranteeing A Longer Life. / High Stability Of The Welding Current Despite Variations In The Supply Voltage / Synergic Adjustment Of Arc Frce And Hot Start According To The Type Of Electrode In Use.
Dimensions	54.6 x 27.4 x 50 cm
Weight	21 kg
