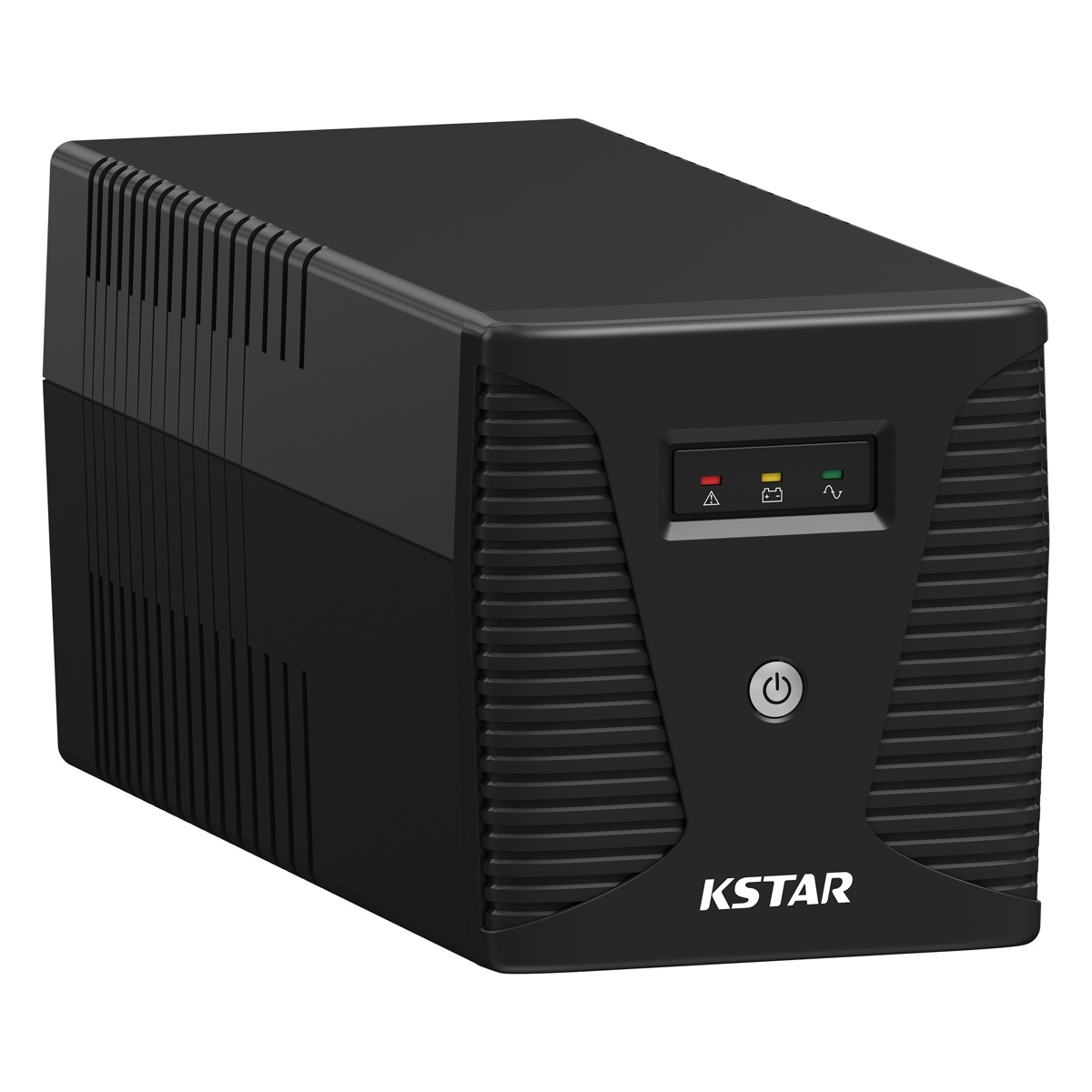

KSTAR UPS UA120 - 1200VA/720W
PRODUCT CODE: UPS-KSTAR-1200V
AVAILABLE
Rs. 33,099
Earn 165 RED points with this purchase More Info
Easy Installment Available.
The Micropower series, featured with smart microprocessor control design, AVR boost and Buck, Smart RS232/USB interface and cold start function, is a cost-effective solution to your mission-critical PC and valuable peripherals.
Features
AVR Boost and Buck
Automatically corrects either under-voltage or over-voltage condition without unnecessary battery drain and extend the life of the battery.
Cold Start Function
Aids users to turn on the UPS without connecting the Utility.
Built-in Self-diagnostic Function
May execute automatically upon power-on or software-control.
Compatible with Generator Set
Micropower series supports wide range input voltage to fit with various generator sets.
Fastest Charging Capacity
With built-in powerful charger, the UPS can be fully charged back to 90% in 6-8 hours.
Auto Charging at Off Mode
The battery may be charged continuously even though it is at OFF mode.
Auto-restart Function
The UPS will be automatically re-started when Utility recovers.
Please refer specifications section for more details...
www.singersl.com
| Type | Line Interactive UPS |
| Model | UA120 |
| Capacity (VA/Watts) | 1200VA/720W |
| Safety / Protection | Overload And Overcharge Protection |
| Indicators | AC Mode, Battery Mode, Load Level, Battery Leve |
| Input/Output | UPS Input/Output : 1P+N+E / 1P+N+E (230V 50Hz) Universal Power Outlet, Output Sockets : 04 Nos |
| Other Features Part 1 | Excellent Microprocessor Control Guarantees High Reliability. (Internal Self-Diagnostic Technology), Boost And Buck AVR For Voltage Stabilization. (Wide Input Range With Two Boost And One Buck Control) |
| Other Features Part 2 | Auto Restart While Ac Is Recovering. | Cold Start Function. | Off-Mode Charging. | Fast Intelligent Battery Recharge Function. | Generator Compatible. |
| Standards | Safety: IEC/EN62040-1;IEC/EN60950-1 | EMC: IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8 |
| Dimensions | 149.3×353×162 W x D x H (mm) |
| Weight | 8.4 kg |
| Colors | Black |
| Other Information | This UPS is specially designed for Personal Computer with multi-functions. lts light weight, compact design perfect fits to the limited working environment. The line of UPS is equipped with two boost and one buck AVR to stabilize wide input voltage range. lt is also built-in with DC start function. This function enables the UPS to be started up without AC power supply. It not only offers great comprehensive power protection against surges and spikes, but also provides pure voltage with AC voltage stabilizer. |
Input
| Nominal Input Voltage | 220/230/240 Vac |
| Operating Voltage Range | 162-290 Vac |
| Operating Frequency Range | 50/60 Hz (1±10%) (Auto Sensing) |
Output
| Output Voltage Range (Batt. Mode) | Simulated Sinewave At Nominal Voltage ±10% |
| Frequency Range (Batt. Mode) | 50 Hz Or 60 Hz ± 1 Hz |
| Transfer Time | Typical 2-6 ms, 10ms Max. |
| Waveform (Batt. Mode) | Simulated Sinewave |
Battery
| Voltage | 24Vdc |
| Battery Type / Number | 12V/7Ah x 2 |
| Typical Recharge Time | 6-8 Hours ( To 90% Capacity) |
Alarm
| Battery Mode | Sounding Every 10 Seconds |
| Battery Low | Sounding Every Second |
| Overload | Sounding Every 0.5 Second |
| Battery Replacement Alarm | Sounding Every 2 Seconds |
| Fault | Continuously Sounding |
Environment
| Operating Temperature | 0 - 40°C |
| Humidity Range | 0-95 % (Non-Condensing) |
| Noise Level | <40db (1 Meter From Surface) |
