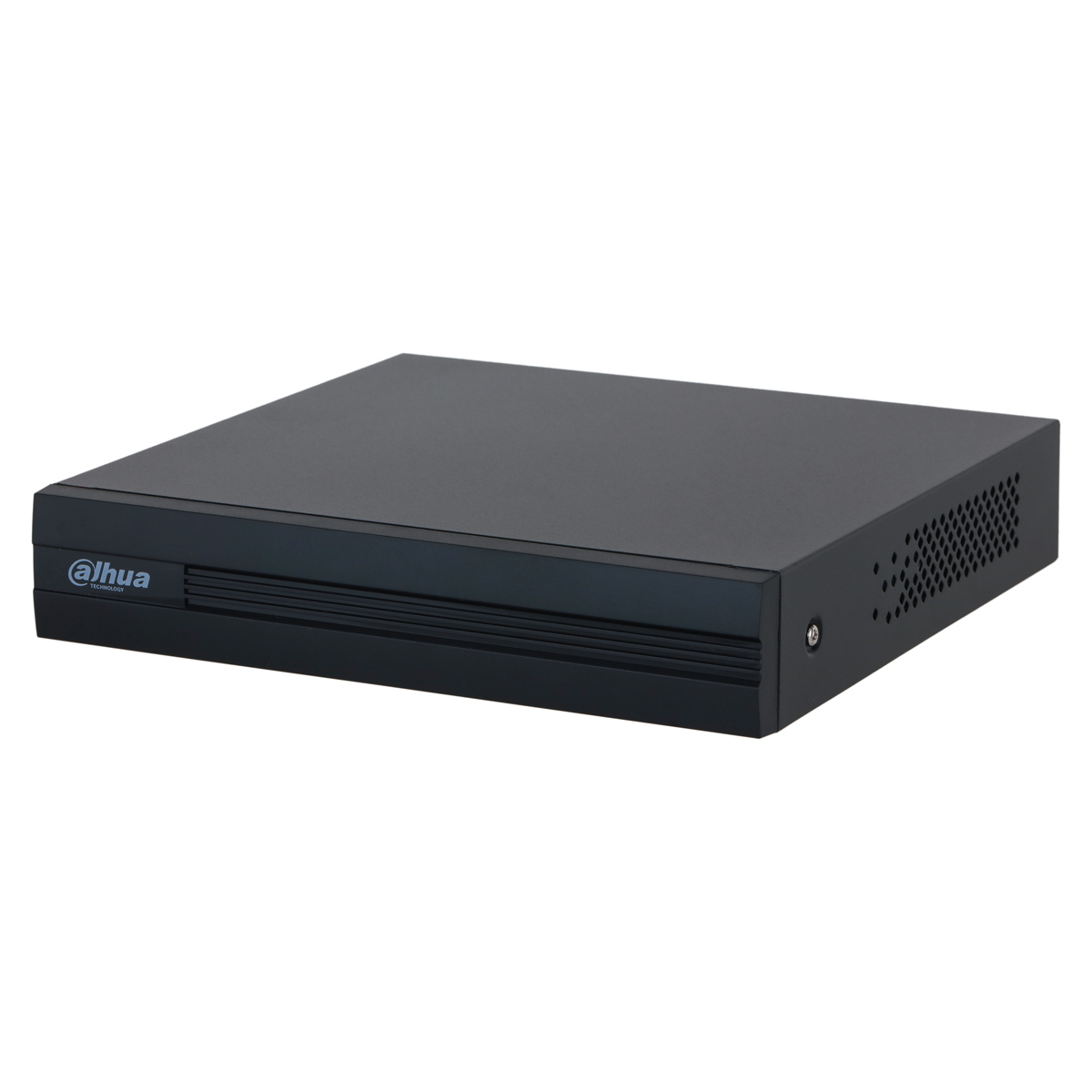

Dahua 512G WizSense Digital Video Recorder (8 Channels) (DH-XVR1B08-I-SSD)
PRODUCT CODE: DH-XVR1B08-I-SSD
AVAILABLE
Rs. 24,500
Earn 123 RED points with this purchase More Info
Easy Installment Available.
| Type | 8 Channels Penta-brid 1080N/720p Cooper 1U 1SSD 512G WizSense Digital Video Recorder |
| Model | DH-XVR1B08-I-SSD |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| SMD Plus Info | 4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| Color | Black |
Audio / Video
| Camera Input | 1. CVI: 1080p@25/30 fps, 720p@25/30 fps., 2. TVI: 1080p@25/30 fps, 720p@25/30 fps., 3. AHD: 1080p@25/30 fps, 720p@25/30 fps. |
| IP Camera Input | Up to 10 channels of IPC access., 2 IP channels by default + 8 channels (analog channels are converted to IP channels), incoming bandwidth: 40 Mbps, recording bandwidth: 40 Mbps and outgoing bandwidth: 40 Mbps ,*After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. |
| Encoding Capacity | Main Stream: 8-channel: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps), Sub stream: 8-channel: CIF@(1 fps–7 fps) |
| Dual-Stream | Yes |
| Video Frame Rate | PAL: 1 fps/s–25 fps/s, NTSC: 1 fps/s–30 fps/s |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9,When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
Compression Standard
| Video Compression | AI Coding; H.265+; H.265; H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
Network
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; UPnP; IP Filter;FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome, IE 9 or later ,Firefox |
| Network Mode | Single-address mode |
Recording Playback
| Record Mode | General; motion detection; intelligent; alarm |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (motion detection) |
Alarm
| General Alarm | Motion detection; camera external alarm; network alarm; PIR alarm |
Ports
| Audio Input | 1-channel RCA, 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-Way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 1 SSD: 512 GB (replaceable with 256 GB or 1 TB), Stores for 11 days under default settings. |
| USB | 2 |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 |
General
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <7 W (with SSD) |
| Weight | 0.62 kg (1.37 lb) |
| Dimensions | 198.3 mm × 202.9 mm × 41.5 mm (7.81'' ×7.99'' × 1.63'') (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950-1/IEC 60950-1,CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024,FCC: Part 15 Subpart B |
